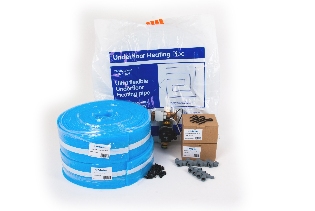

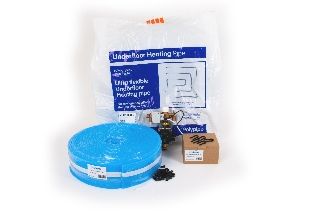

Polypipe High Output single room packs (200mm pipe centres) are a great option if you just want underfloor heating in one room of your house up to 12m2, 20m2 or 30m2.

They connect onto existing Heating System with the Zonal Regualtion Unit and can come on with radiators or with extra room stat can be controlled separately

Staple underfloor heating system fits directly onto the insulation that is laid before a screed or concrete floor is installed. This a traditional way of installing underfloor heating into a solid/screeded floor. The Polypipe Staple system is a cost-effective solution for screeded floors by simply using a staple gun to fix the pipe directly to the insulation

KEY DESIGN INFORMATION

Typical Heat Output at 50°C
mean water Temperature

91W/m² at 100mm Pipe Spacing
Recommended Design Flow Temp50°C
Maximum Circuit Length100m
Maximum Coverage per circuit

10m² at 100mm centres
