Polypipe 3 Port Stainless Steel EuroCone UFH Manifold - UFH12753EC

Polypipe 3 Port Stainless Steel EuroCone UFH Manifold - UFH12753EC

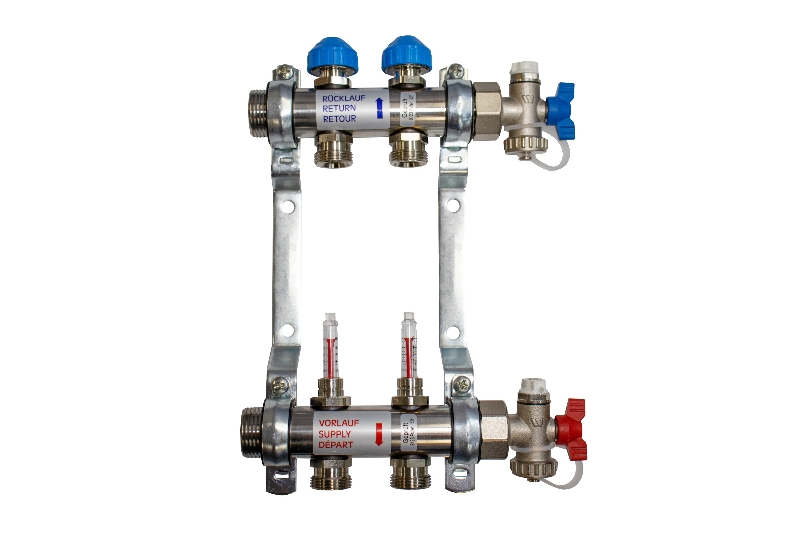

This Polypipe stainless steel manifold has 3 ports and is suitable for use with 15mm or 12mm pipe.

Manifolds are used in all underfloor heating systems above 30m², irrespective of floor type. Manifolds are supplied complete and fixed with a wall mounting bracket. The manifold comes complete with the drain and air vent assembly, which can be positioned on either end of the manifold. Isolation valves are supplied separately for the supply end of the manifold.

Each manifold includes a flow meter on each port, making it possible to precisely control the flow of water through the system for even and energy efficient heating.

Intended use:

The manifolds are used for distributing and regulating the volume of flow in low temperature floor heating or cooling systems. The manifolds
are to be operated using heating water as per VDI 2035. In the case of systems, the heating water of which contains corrosive
particles or other contaminants, dirt traps or filters with a mesh size of no more than 0.8 mm are to be fitted in order to protect the
measuring and control devices.

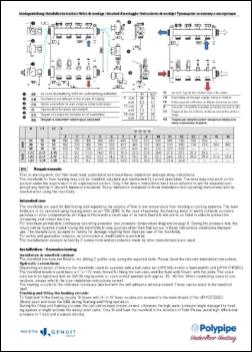

For maximum permissible continuous operating pressure: see pressure- temperature diagram on page 8. During the pressure test, the
return valves must be closed. Using the manifolds for any purpose other than that set out in these instructions constitutes improper
use. The manufacturer accepts no liability for damage resulting from improper use of the manifolds.
For safety and guarantee reasons, no conversion or modification is permitted.
The manufacturer accepts no liability if connections and accessories made by other manufacturers are used.
