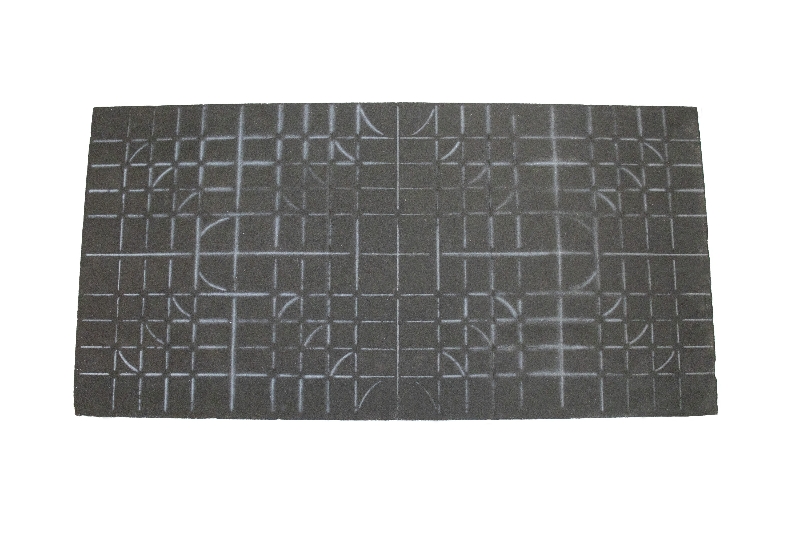

Polypipe Overlay Plus ENH Transition Panel 1200mm x 600mm x 18mm Pack of 10 - UFHOPTPE

Overlay^® Plus

Multi-Directional Panel Pack of 10

• New panels allow for multi-directional routing of connection pipes
• No need for plastic end returns
• Panels assist with pipe routing at the manifold, with pipes spaced at 50mm centres, making the routing of connection pipes easier
• Provides a system solution to fit the entire floor no matter the size
• Replaces the need to screed over connection panels

Available in an acoustic version

Polypipe's patented OverlayTM Plus is available from TDL Online. The underfloor heating board is a low-profile system that has been designed to be installed over existing floors. Making it the ideal product for renovation and new build projects. The new OverlayTM Plus  accommodates all types of floor coverings whilst remaining lightweight rigid and easy to install. The panels are formed of extruded polystyrene giving them their lightweight feature while also providing additional properties such as; thermal insulation, decoupling and waterproofing. The panel features two thin layers of fibre-reinforced polymer concrete with a polyester fleece-coated layer on top of an reflective aluminium foil. The aluminium layer is designed to evenly diffuse the heat from the pipes over the surface of the board. A version to reduce transmission of impact noise is available with a layer of synthetic rubber on the bottom side

The major component of the Overlay Plus Panel is rigid extruded polystyrene foam of a closed cellular structure. The core provides the following properties: Thermal Insulation, Decoupling and Waterproofing
The core is between two thin layers of fibre-reinforced polymer concrete with a polyester fleece-coated layer of aluminium on the top. The aluminium layer provides the following property: Dispersion of heat from the pipes over the surface of the board.
A version to reduce transmission of impact noise is available with a layer of synthetic rubber on the bottom side. 12mm diameter groves are cut into the board's top surface to house the heating pipes.

Dimensions - 600 x 1200 x 18mm

Weight - 1.2Kg
