Hetta Manifold Control Pack - HSMZCP01
Stock code: HSMZCP01
£234.54ex VAT(£281.45inc VAT)
FREE Next Working Day Delivery
- delivery details
Payment methods we accept:
Need help selecting the right product?
Call our expert support team on 01622 716 758
Ask a question about the product

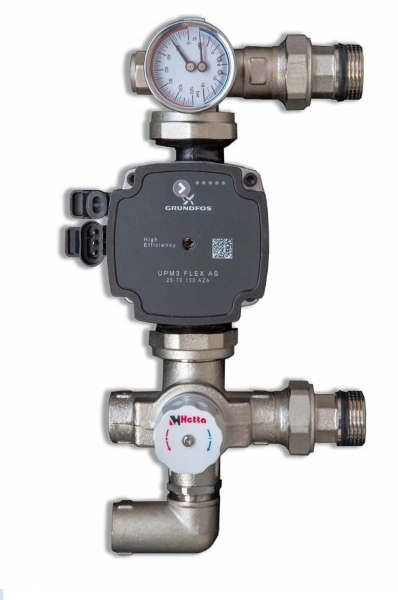

Hetta Manifold Control Pack - HSMZCP01
A modular control pack for underfloor heating systems. Designed to be lightweight and compact to connect directly onto a standard UFH manifold without the need for extra brackets or support. The control pack consists of a mixing valve, 14 kw circulating pump, connection elbows, manifold adaptors, and all necessary seals. The control pack is supplied unassembled and by default is set for assembly on the left side of the manifold, a brass fitting is supplied that can be used to reverse the connections on the blending valve to suit a right-side manifold orientation
- Provides controlled mixed temperature water to underfloor heating systems with heat output up to 14kW
- Lightweight and compact in order to connect directly onto standard manifold without the need for extra brackets or support
- The control pack consists of; mixing valve, A
- Used in conjunction with 2-12 port manifolds
- Compact bolt on unit providing quick and simple installation
- Easy set up within the adjustable range of 35°C to 65°C
- Controls flow temperature to +/-2°C even with changing boiler flow and return temperatures
- Manufactured to BS EN 1264-4
