Telford Hot Water Copper Cylinder 1500mm X 300mm Indirect Grade 3 Part L - B3I15030VF

TELFORD 1500MM X 300MM INDIRECT VENTED GRADE 3 PART L FOAMED CYLINDER 64 X 12 - B3I15030VF

HOT WATER COPPER CYLINDER - Indirect
Designed to be linked to a remote heat source, such as a gas boiler or coal fire. The water within the central heating system is heated by the remote heat source and is passed through the coil in cylinder. As the primary usually operates at around 80 degrees, the heat is exchanged into the hot water copper cylinder and warms the domestic water. Manufactured and fully approved to the latest British Standard specification BSI566:2002 (Part L).

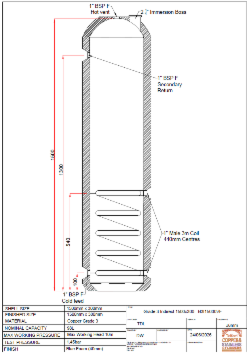

Technical Details

• Size: 1500x300 (mm)
• Capacity: 92 Litres
• Type: Indirect Vented
• Material: Copper
• Warranty: 10 Years
• Need to allow 35mm of Lagging each side (+70mm diameter)
• Compression Fittings Available
• All Vented Copper cylinders come with a 1" secondary return

Extras to order with cylinder if going to 22mm Pipe:

1 x Tesla Incoloy with Copper Thermostat Pocket 36" Element with 18" Thermostat TIH560

2 x 22mm X 1" Compression Male Iron Coupling BC21252

2 x 22mm X 1" Compression Female Iron Coupling BC21352

Secondary Return (shower take off) either 1" plug BBP3 or another Male Iron BC21252

Extras to order with cylinder if going to 28mm Pipe:

1 x Tesla Incoloy with Copper Thermostat Pocket 36" Element with 18" Thermostat TIH560

2 x 28mm X 1" Compression Male Iron Coupling BC21253

2 x 28mm X 1" Compression Female Iron Coupling BC21353

Secondary Return (shower take off) either 1" plug BBP3 or another Male Iron BC21253
