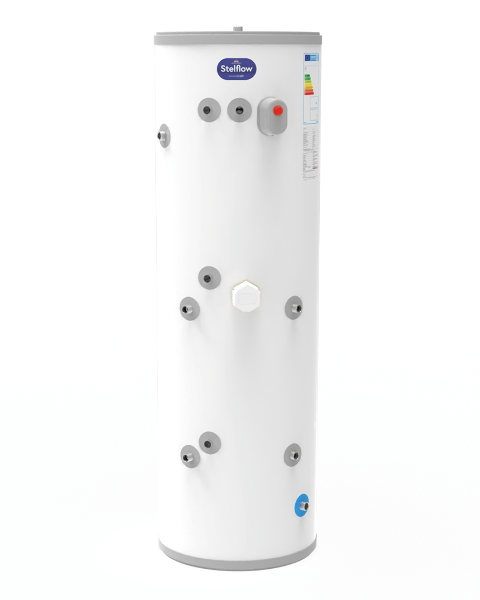

RM Stelflow 150L Twin Coil Solar Cylinder - TRSMVS-0150LFB
Stock code: TRSMVS-0150LFB
Size
: H-1140mm D-545mm
£664.00ex VAT(£796.80inc VAT)
FREE Next Working Day Delivery
- delivery details
Payment methods we accept:
Need help selecting the right product?
Call our expert support team on 01622 716 758
Ask a question about the product
RM Stelflow 150L Twin Coil Solar Cylinder - TRSMVS-0150LFB
The new standard in unvented hot water solutions for residential dwellings available at TDL Online
Joule Stelflow unvented cylinders features a dedicated high performance solar coil, transferring the maximum amount of heat from the solar circuit to the stored water. The indirect cylinders are heated by a conventional boiler (either gas or oil) through a second high performance coil and specifically designed for solar thermal applications. Fitted with a high efficiency coil to maximise the heat transfer from the solar input.
Stelflow cylinders have carefully been constructed using quality components and has been designed with performance in mind. Using our many years of involvement within the hot water industry and our knowledge of bringing unvented cylinders to the market we have created a new standard in unvented water storage.
Delivery times:
If in Stock 2-3 Working days. TDL will email you with your delivery date
Specials delivery lead time 10-12 Working Days
If needed urgently please call before purchasing and TDL will check the lead time for you
What Comes With the Cylinder:
- Inlet Control Group
- Tundish
- T&P Valve (fitted)
- 3kW Immersion (fitted)
- Expansion Vessel
- Dual Cylinder Stat
- 2-port Zone Valve
Features and benefits
Manufactured from high grade Duplex stainless steel
Specifically designed for use with solar thermal panels
Fitted with Branded Quality Components
Can be used with gas or oil boilers
| Product Specification | |||
| Actual capacity (Ltr ) | 150 | Thermal insulation | DENSE PU FOAM |
| Unit weight empty (kg ) | 40 | Cylinder material | LDX 2101 |
| Unit weight full (kg ) | 182 | Outer casing | COATED MILD STEEL |
| No immersions | 1 | Coil material | 316L STAINLESS STEEL |
| Immersion spec | 3KW@230V | Foam thickness | 0 |
| Max mains water pressure (Bar ) | 10 | Operating temp (C ) | 60 |
| Operating pressure (Bar ) | 7 | Safety valve temp (C ) | 95 |
| Tested to standard | BS EN 12897:2006 | Warranty terms (Year ) | 25Y |
| No heat exchangers | 2 | Heat loss | 1.26 |
| Coil 1 rating (kW ) | 16.33 | Coil 2 rating (kW ) | 17.49 |
| Coil 1 surface area (m² ) | .66 | Coil 2 surface area (m² ) | .66 |
| Coil 1 max prim pressure (Bar ) | 3.5 | Coil 2 max prim pressure (Bar ) | 3.5 |
| Coil 1 resistance (Bar ) | .2 | Coil 2 resistance (Bar ) | .2 |
| Dimensions | |
| A - Height (mm ) | 1140 |
| B - Diameter (mm ) | 545 |
| C (mm ) | 195 |
| D (mm ) | 310 |
| E (mm ) | 310 |
| F (mm ) | 705 |
| G (mm ) | 900 |
| I (mm ) | 390 |
| Size | H-1140mm D-545mm |
