Joule Invacyl 120L Indirect Slimline Unvented Cylinder - TRBMVI-0120SFC
Stock code: TRBMVI-0120SFC
Size
: H-1205mm x D-475mm
£562.00ex VAT(£674.40inc VAT)
FREE Next Working Day Delivery
- delivery details
Payment methods we accept:
Need help selecting the right product?
Call our expert support team on 01622 716 758
Ask a question about the product
Joule Invacyl 120L Indirect Slimline Unvented Cylinder - TRBMVI-0120SFC
The Invacyl Cylinder has carefully been constructed using quality components and has been designed with performance in mind. Using our many years of involvement within the hot water industry and our knowledge of bringing unvented cylinders to the market we have created a new standard in unvented water storage.
The Joule unvented cylinder comes in a sleek white outer casing with a reduction in diameter than the regular indirect unvented cylinder to maximise floor footprint. The joule hot water cylinder has a sleek grey outer case. It offers smooth tube and high-efficiency coils as standard. Invecyl Cylinder comes with Callefi Safety components and is supplied with screwed connections with compression fittings.
Delivery times:
If in Stock 2-3 Working days. TDL will email you with your delivery date
Specials delivery lead time 10-12 Working Days
If needed urgently please call before purchasing and TDL will check the lead time for you
What Comes With The Cylinder:
- Inlet Control Group
- Tundish
- T&P Valve (fitted)
- 3kW Immersion (fitted)
- Expansion Vessel
- Dual Cylinder Stat
- 2-port Zone Valve

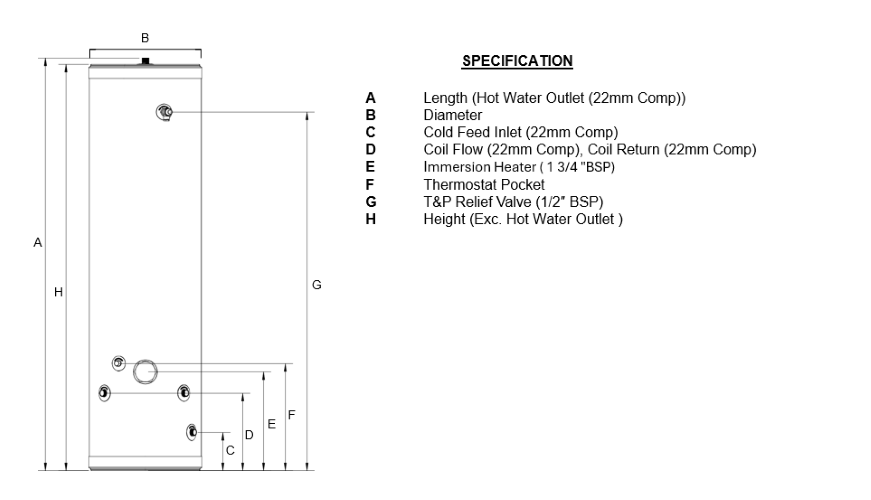

| Dimensions | |
| A (mm ) | 1205 |
| B (mm ) | 475 |
| C (mm ) | 161 |
| D (mm ) | 287 |
| E (mm ) | 367 |
| F (mm ) | 412 |
| G (mm ) | 976 |
| H (mm ) | 1178 |
/Dim.%20Diagram/Indirect-CIC-SLM-120L,150L,180L.jpg)
| Size | H-1205mm x D-475mm |
| Actual capacity (Ltr) | 109 |
| Unit weight empty (kg) | 30 |
| Unit weight full (kg) | 139 |
| Number of Immersions | 1 |
| Immersion spec | 3KW@230V |
| Max mains water pressure (Bar) | 10 |
| Operating pressure (Bar) | 7 |
| Tested to standard | BS EN 12897:2016 |
| No heat exchangers | 1 |
| Coil 1 rating (kW) | 15.63 |
| Coil 1 max prim pressure (Bar) | 6 |
| Thermal insulation | DENSE PU FOAM |
| Cylinder material | LDX 2101 |
| Outer casing | COATED MILD STEEL |
| Coil material | 316L STAINLESS STEEL |
| Operating temp (C) | 60 |
| Safety valve temp (C) | 90 |
| Warranty terms (Year) | 25 |
| Heat loss | 1.368 |
| Coil 1 surface area (m²) | 0.66 |
| Coil 1 resistance (Bar) | 0.2 |
