Joule Invacyl 90L Indirect Unvented Cylinder - TRBMVI-0090LFC
Stock code: TRBMVI-0090LFC
Size
: H-733 D-550
£427.00ex VAT(£512.40inc VAT)
FREE Next Working Day Delivery
- delivery details
Payment methods we accept:
Need help selecting the right product?
Call our expert support team on 01622 716 758
Ask a question about the product

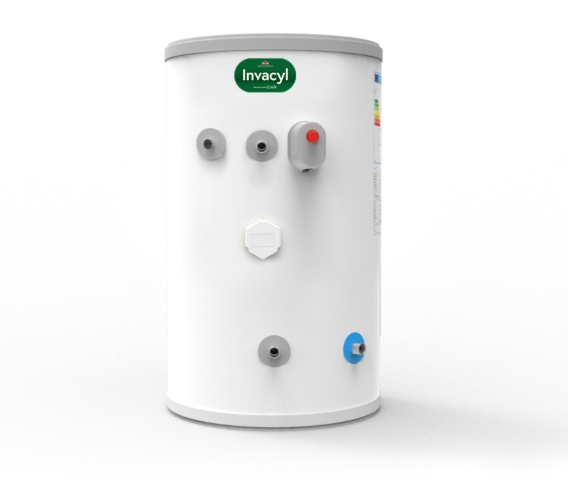

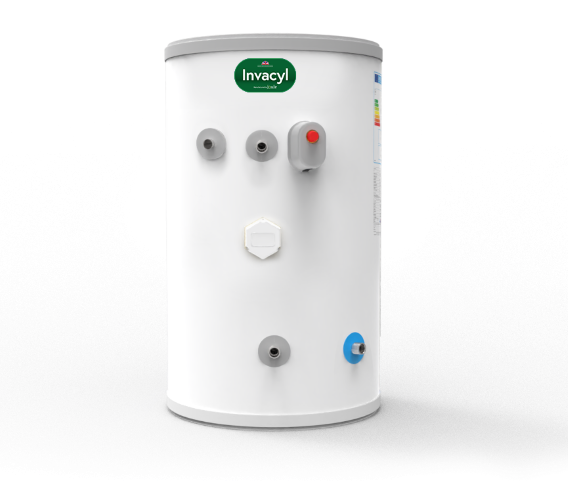

Joule Invacyl 90L Indirect Unvented Cylinder - TRBMVI-0090LFC
The New Standard In Unvented Hot Water Solutions.
The Joule Invacyl unvented cylinder is designed to work using it factory fitted electrcial elements. The joule hot water cylinder has a sleek white outer case. It offers smooth tube and high-efficiency coils as standard. Invecyl Cylinder comes with Callefi Safety components and is supplied with screwed connections with compression fittings.
Our Invacyl cylinders have carefully been constructed using quality components and have been designed with performance in mind. Using our many years of involvement within the hot water industry and our knowledge of bringing unvented cylinders to the market we have created a new standard in unvented water storage.
Delivery times:
Order before 12 Noon for Next Working Day Delivery
What Comes With The Cylinder:
- Inlet Control Group
- Tundish
- T&P Valve (fitted)
- 3kW Immersion (fitted)
- Expansion Vessel
- Dual Cylinder Stat
- 2-port Zone Valve
Features and benefits
Manufactured from high grade Duplex stainless steel
Fitted with Branded Quality Components
Can be used with gas or oil boilers
UK – Fitted with a plastic T & P outer casing and colour coded tapping collars
- 25 year Warranty
| Product Specification | |||
| Actual capacity (Ltr ) | 86.4 | Thermal insulation | DENSE PU FOAM |
| Unit weight empty (kg ) | 23 | Cylinder material | LDX 2101 |
| Unit weight full (kg ) | 109 | Outer casing | COATED MILD STEEL |
| No immersions | 1 | Coil material | 316L STAINLESS STEEL |
| Immersion spec | 3KW@230V | Foam thickness | 0 |
| Max mains water pressure (Bar ) | 10 | Operating temp (C ) | 60 |
| Operating pressure (Bar ) | 7 | Safety valve temp (C ) | 90 |
| Tested to standard | BS EN 12897:2006 | Warranty terms (Year ) | 25Y |
| No heat exchangers | 1 | Heat loss | 0.96 |
| Coil 1 rating (kW ) | 5.3 | Coil 1 surface area (m² ) | .59 |
| Coil 1 max prim pressure (Bar ) | 6 | Coil 1 resistance (Bar ) | .2 |

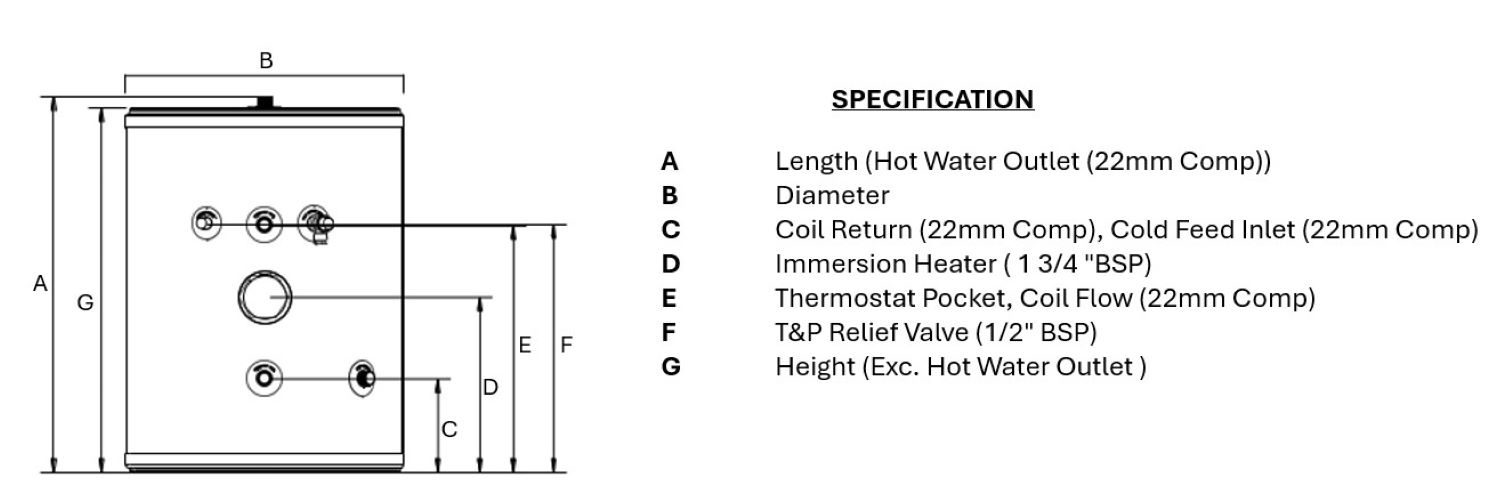

| Dimensions | |
| A - Height (mm ) | 733 |
| B - Diameter (mm ) | 550 |
| C (mm ) | 195 |
| D (mm ) | 495 |
| E (mm ) | 515 |
| F (mm ) | 355 |
| H (mm ) | 515 |
| Size | H-733 D-550 |
