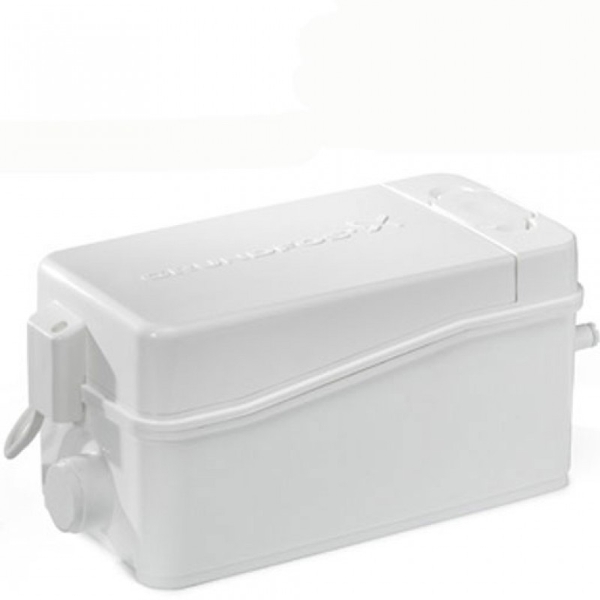

Grundfos Sololift2 D-2 Macerator/Lifting Station

SOLOLIFT2 D-2 (Washbasins, Showers, Bidets)

The SOLOLIFT2 D-2 is an ultra compact lifting station suitable for pumping wastewater from a shower and washbasin.

• Ultra compact
• Clean and easy service
• Low start level

TECHNICAL DATA

Features

The SOLOLIFT2 range was designed to be less complicated, in order to make your job easier. With new features that make it even superior to the previous SOLOLIFT, you'll find yourself with more time and less problems.

RELIABILITY

1 - Welded, pressure-tight tank design, which is essential for the washing machine & dishwasher connections.
2 - Vortex impeller with 20 mm free passage to increase reliability. It handles 90°C water temperature without any
limitations.

EASY SERVICE

3 - Dry-motor design for easy and clean service. Motor, pump and controller unit are integrated into one for easier serviceability & replacement. The SOLOLIFT2 will remain in place for the entire service.
4 - Self-adjusting auto coupling eases assembly in service case.
5 - Important screws are captive.
6 - Manual anti clogging function.
7 - Separate drain function by socket and drain hose.
8 - Contains a float switch solution with two start levels, as well as a protection tube and bayonet lock for single service without needing to disassemble the whole pump unit.

REPLACEABILITY

9 - More compact design. Can easily replace any macerator product on the market. Adaptive height adjustable connectors.
10 - Selectable outlet direction for easy replacement.

LOW MAINTENANCE

11 - Innovative bottom design with a strong chamfer and a self-cleaning function to avoid sedimentation.

EASY INSTALLATION

12 - Uplift fixing with clip makes the SOLOLIFT2 easy to install.
13 - Free-standing or in-wall installation possible

For more Technical Info Click Here
